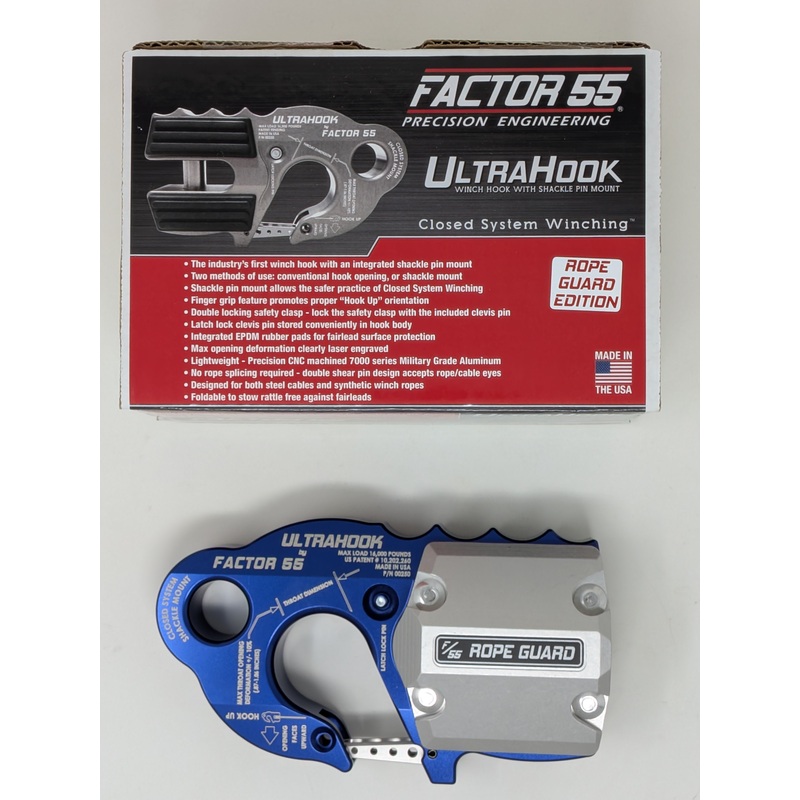

FACTOR 55 BLUE ULTRA HOOK AND ROPE GUARD | 00250-02 & 00381

Manufacturer: Factor 55

Manufacturer Part # 00250-02 & 00381

Overview
All the benefits of Closed System Winching with the versatility of having a hook. Originally developed to meet the needs of off-road racers who wanted the speed of a hook and functionality of closed system winching, the low-profile UltraHook features an industry-first closed system shackle mount hole machined into the body of the hook and installs in minutes. A latch pin, which is stored in the hooks body, can lock the safety latch securely into place for a true Closed Loop System. Integrated finger grips promote proper Hook Up orientation. UltraHook is the first winch hook that can be stored neatly against a winchs fairlead protecting it from a metal-to-metal connection, thanks to EPDM rubber pads, which also eliminate the UltraHook from rattling.

Features

• Easy-to-install shackle mount with a hole machined into the hooks body. Shackle pin mounting hole accepts screw pins from common and soft shackles up to 1/2
• Use either as a conventional hook or a shackle mount
• No rope splicing required double shear pin design accepts rope/cable eyes, for use with either steel or synthetic winch rope
• Lightweight Precision CNC machined 7000 series Military Grade Aluminum
• Max opening deformation clearly laser engraved
• Safety latch with integrated latch lock pin allows for true closed system winching
• Includes 5/8 diameter aerospace grade 6AI-4V grade V titanium double shear pin
• EPDM rubber pads for fairlead protection, and a finger grip feature that promotes proper Hook Up orientation; also prevents rattling
• Can be used with line diameters up to 3/8
• 3 thick when folded flat
• Maximum Load: 16,000 lbs.
• Ultimate Strength Hook Throat Opening: 31,000 pounds
• Ultimate Strength Shackle Pin Mount: 48,000 pounds
• Weight: 32 oz
• Engineered, Tested, and Made in USA. Patent pending
